Description

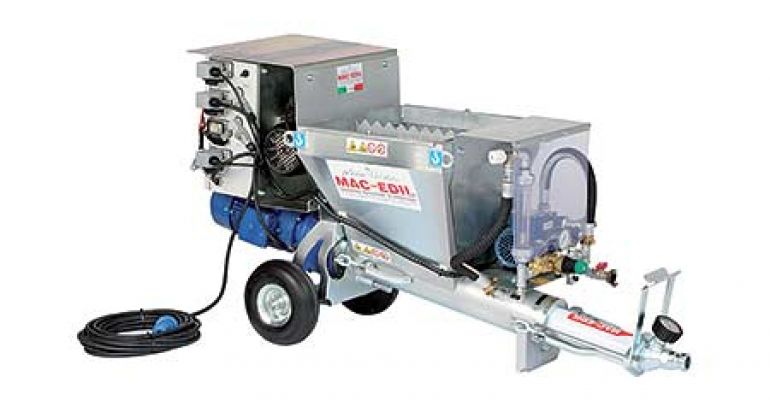

The DM-2/20 Plaster Sprayer is used to carry and spray both standard and premixed plaster in automatic mode.
It is provided with an electrical panel having an inverter for adjusting the flow rate, which can range from 0 to 25l/min, therfore it also gives excellent results in injections and filling of joints between visible bricks and stones.
This machine has minimum overall dimensions and is highly manageable; it can also be totally disassembled to allow perfect cleaning.
Designed to be placed underneath the mortar mixing machine, it can be provided with a vibrating screen.

Technical data
Volts 230 V 400 V
Flow rate 5-25 l/m 5-25 l/m
Power 2,2 kW 5,5 kW
Capacity 70 l 70 l
Pumping distance
• Premixed 15 m 15 m
• Standard 25 m 25 m
Grain-size distribution 0-5 mm 0-5 mm
Approximate grain-size distribution, depending on the quality and composition of the material

Dimensions
Loading height 700mm
Overall height 800mm
Width 600mm
Length 1500mm
Weight 160 kg

Standard equipment
Mt 15 grout tube + air + control
1 plaster gun
1 standard key case
1 use and maintenance manual
1 conformity declaration
1 stator
1 rotor
1 compressor
1 electric panel with inverter
Water plant with pump
